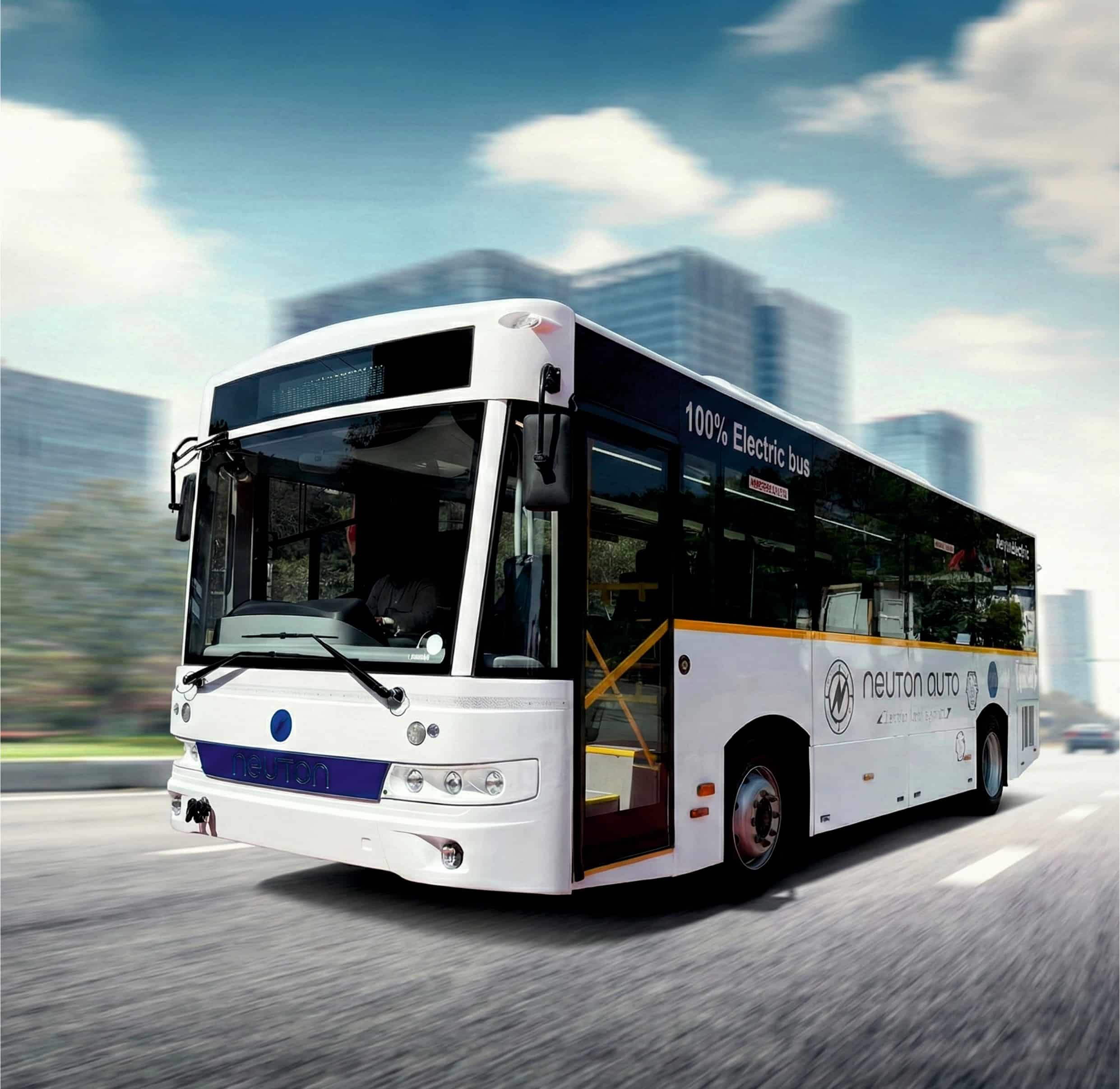

Staff Bus

Neuton Auto Staff Buses are available in two variants—9m 31+D and 9m 41+D—engineered for efficient, comfortable, and sustainable employee transportation across diverse operational needs.

For Technical Specifications Changes required in Existing Model 9m City Bus

Bus Dimensions & Capacity

Length of the Bus - 9230 mm

Structure

Suspension System
1. Front - Independent Air Suspension System
2. Rear - Wishbone mounted Air Suspension

Charging System

Power in kwh Charger Options in kWh - 120 / 180 / 240 kWh

Battery

Battery Capacity - 200 kWh

Technical Specifications

Bus Dimensions

Length of city bus	:	9230 mm
Wheelbase	:	4640 mm
Floor height min	:	900mm, 1100mm

Structure & Capacity

Frame	:	Monocoque
Gross Vehicle Weight	:	13,500 kgs
Suspension System	:	Front - Independent Air Suspension System Rear - Wishbone mounted Air Suspension
Passenger Seating Capacity	:	31 (Reclining High Back) + D 41 (Fixed High Back) +D
Stretch and Skirt Panels	:	Pre-painted aluminium panels

Battery

Battery capacity	:	200 kwh
Battery chemistry	:	Lithium Iron Phosphate (LFP)
Time for full charge	:	2hrs with external charger with proposed batteries and charging solution

Build configuration

Bus structure	:	Monocoque spaceframe compliance with AIS052
Door system	:	Electro Penumatic

Charging system

Air climate system	:	Available
Charge mode	:	DC fast charging
Charger Options in kWh	:	120 / 180 / 240 kWh

Explore Options That Complement the E-Space 9

The E-Space 9 is ideal for compact city routes, but many operators also consider larger capacity models, school-route applications, or detailed specifications to build a complete and efficient fleet. Explore related options that pair naturally with the E-Space 9:
